Full specifications for the TRAC router range and the accessories that extend it.
TRAC is a primarily wireless communication solution for service terminals. Every compact router — typically installed inside the machine — ships with built-in mobile connectivity and connects to a mission-critical backend, fully managed through VMI's web portal. Add an optional wired WAN connection and the solution becomes fully redundant.
Up to three isolated networks can be configured on a single device — for example for card transactions, alarms and camera surveillance — completely separated from one another.
See all countries with flat-rate pricing → Explore the web portal →
TRAC is an optimized communication solution for ATM connections.
TRAC is offered at the same flat rate in all countries listed below, and is also available in many more countries on request.
Four router models built on the same platform, plus accessories for power control, backup power and antenna placement. Click any product for full specifications.
The TRAC 200 has 2 external ports, ideal for environments needing one VLAN connection and a WAN/internet port. Compact and easy to install, compatible with all major manufacturers.
| Dimensions | 83 × 25 × 74 mm |
| Weight | ~125 g |
| Ethernet | 2 × 10/100 Mbps |
| SIM | 1 × SIM |
| Mobile network | 4G LTE (Cat 4), 3G, 2G |

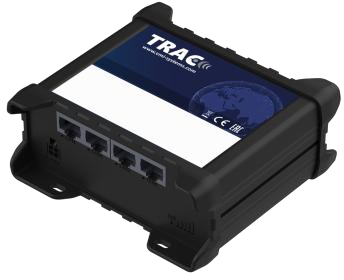

The most common unit in our service offering, thanks to its cost-effectiveness, multiple ports, and highly stable, reliable design. Features 4 external ports for WAN/internet and VLAN connections for alarms or cameras.
| Dimensions | 110 × 50 × 100 mm |
| Weight | ~287 g |
| Ethernet | 4 × 10/100 Mbps |
| SIM | 2 × SIM (Active-Passive) |
| Mobile network | 4G LTE (Cat 4), 3G, 2G |

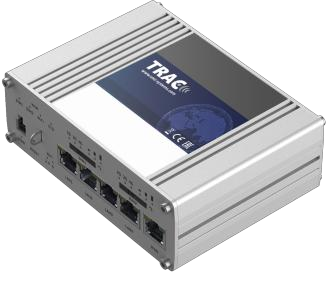

Supports 5G, 4G and 3G, with 5 external gigabit ports for WAN/internet and VLAN connections for alarms or cameras — built for locations that need the extra headroom.
| Dimensions | 132 × 44.2 × 95.1 mm |
| Weight | ~533 g |
| Ethernet | 5 × Gigabit |
| SIM | 2 × SIM (Active-Passive) |
| Mobile network | 5G, 4G (Cat 20), 3G |

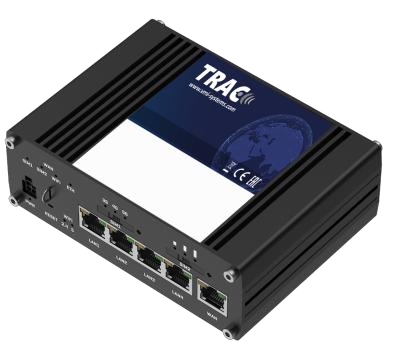

A very robust 4G ATM router equipped with load balancing and redundancy via two separate operators. Five external ports connect wired internet and additional VLANs for alarm or camera functions.
| Dimensions | 132 × 44.2 × 95.1 mm |
| Weight | ~540 g |
| Ethernet | 5 × Gigabit |
| SIM | 2 × SIM (Active-Active) |
| Mobile network | 4G LTE (Cat 6), 3G, 2G |

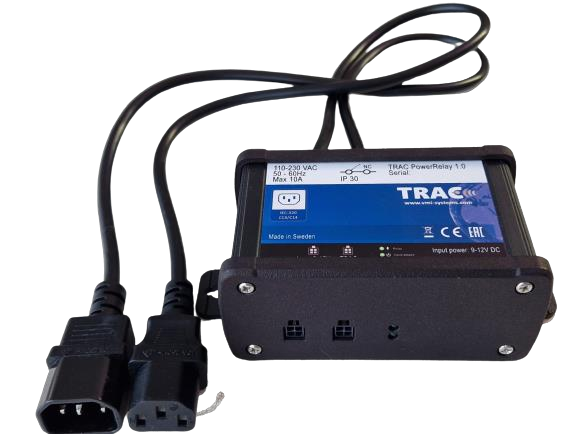

TRAC PowerRelay saves a visit. Control ATM power from the TRAC portal to restore an unstable or "blue screen" PC, eliminate ATM use for jackpotting, or recycle power after a brownout — fully integrated into the TRAC product range.
| DC connector (bypass) | 4-pin industrial DC power socket |
| Output voltage (passthrough) | 9 – 12 VDC |
| AC connector | IEC C13/14 |
| AC switching capacity | 10 A (resistive load) |
| Dimensions | 80 × 108.5 × 45 mm |

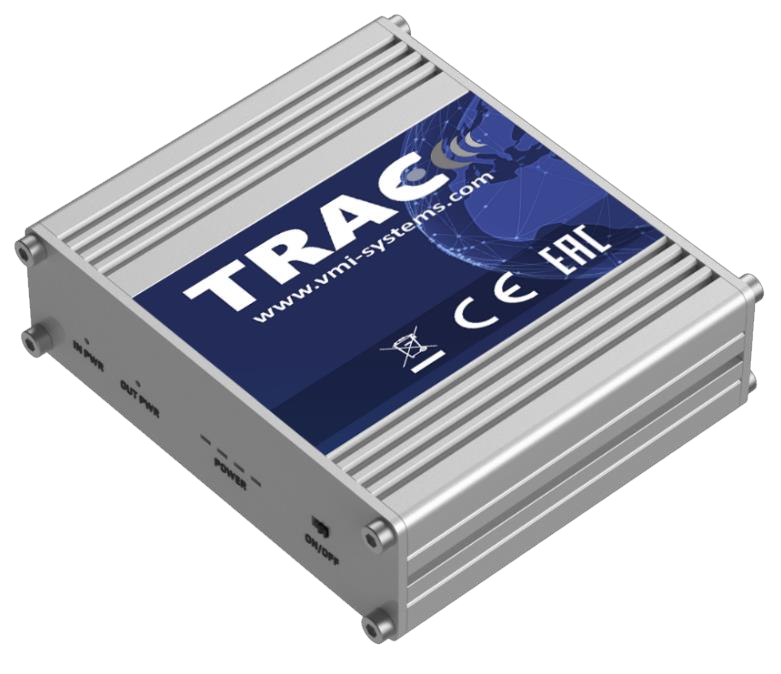

An uninterrupted power supply for TRAC units, keeping the device running for up to 6 hours during a power outage. Fully integrated into the TRAC portal — it logs every event and can raise an alarm, which also helps troubleshoot lost contact with an ATM.
| Input voltage (passthrough) | 9 – 30 VDC |
| Output voltage (battery mode) | 12 VDC |
| Battery capacity | 2300 mAh (17 Wh) |
| Max output (battery mode) | 22 W / 1.8 A |
| Alarm output | 1× active HIGH, max 12 V |
A wall-panel antenna commonly mounted near the machine. Supports GPRS, 3G, 4G and 5G connectivity using MIMO technology up to 5 dBi, for indoor or outdoor use.
| Mounting | Wall panel, near the machine |
| Connectivity | GPRS / 3G / 4G / 5G |
| MIMO gain | Up to 5 dBi |
A dome antenna commonly mounted on top of the machine. Supports GPRS, 3G, 4G and 5G connectivity using MIMO technology up to 5 dBi.
| Mounting | Dome, on top of the machine |
| Connectivity | GPRS / 3G / 4G / 5G |
| MIMO gain | Up to 5 dBi |
Six reasons ATM operators across Europe choose TRAC over traditional network connectivity.
Responsive administration for field technicians, support and management — on mobile, desktop, or a NOC screen.
See the portal →Scale up or down as needed, and pause individual units temporarily during relocation.
The same cost-effective pricing and quality, no matter which country the machine is in.
See all countries →AES-256 encryption and automatic selection of the strongest signal and operator, with support for wired redundancy.
Stable operation and remote administration reduce the need for on-site visits.
The TRAC 900 series can handle transactions, alarms and camera in a single device.
